Sort of mega post ahead
This is what I was on about. This is by no means finished. The real thing has all of the components put together so the separate ones won’t be as clear. Also, it doesn’t look very car-like because I’ve done it as a display of all of the mechanisms and not as a car (also because I couldn’t be bothered to design a proper body )
The main chassis:
The plating on the bottom of the chassis (the chassis sits on top of this, it gives it a flat underbelly) :
Active aero splitter box:
Basically this either directs power to the left spoilers or the right ones depending on where the green switch is set to. It’s not finished yet, the diverted power goes to actuators which move the spoilers. The power comes in at the beige gears and is split towards either one or none of the grey shafts.
Rear suspension ( without the splitter box attached) :
This is probably the only part of the car that isn’t my design (I lifted it from the original model) but even then I’ve heavily modified it.
Front suspension:
I don’t know what was more annoying, improvising this or taking off all of the panels and trying to see what I built down in the bowls of the damn thing so I can make it in the program. It was annoying to make digitally too. I should also say that it’s so annoying because I’ve made it 4WD. If it wasn’t I would have lifted it from the original model too. The red panels are part of the active aero.
Without the body panels:

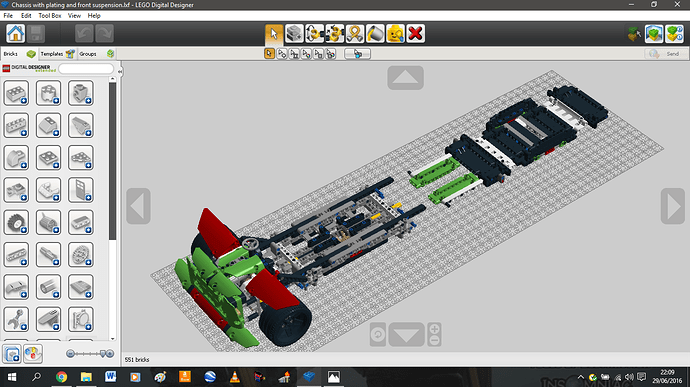

I’ve started putting the different parts together:
(this part is nearly finished)
I also designed this manual air brake (I couldn’t find a good way to automate it):
The real thing is built but I ran out of the parts I need to mount it.
Sorry for the maga post
